3D bioprinting inside the human body could be possible thanks to new soft robot

Engineers from UNSW Sydney have developed a miniature and flexible soft robotic arm which could be used to 3D print biomaterial directly onto organs inside a person’s body.

3D bioprinting is a process whereby biomedical parts are fabricated from so-called bioink to construct natural tissue-like structures.


Their work has resulted in a tiny flexible 3D bioprinter that has the ability to be inserted into the body just like an endoscope and directly deliver multilayered biomaterials onto the surface of internal organs and tissues.

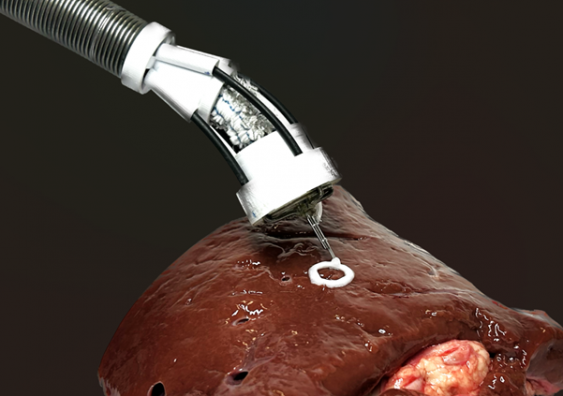

The proof-of-concept device, known as F3DB, features a highly manoeuvrable swivel head that ‘prints’ the bioink, attached to the end of a long and flexible snake-like robotic arm, all of which can be controlled externally.

The research team say that with further development, and potentially within five to seven years, the technology could be used by medical professionals to access hard-to-reach areas inside the body via small skin incisions or natural orifices.

The research team tested the device inside an artifical colon where it was able to traverse through confined spaces before successfully 3D printing.

Dr Do and his team have tested their device inside an artificial colon, as well as 3D printing a variety of materials with different shapes on the surface of a pig’s kidney.

“Existing 3D bioprinting techniques require biomaterials to be made outside the body and implanting that into a person would usually require large open-field open surgery which increases infection risks,” said Dr Do, a Scientia Senior Lecturer at UNSW’s Graduate School of Biomedical Engineering (GSBmE) and Tyree Foundation Institute of Health Engineering (IHealthE).

“Our flexible 3D bioprinter means biomaterials can be directly delivered into the target tissue or organs with a minimally invasive approach.

“This system offers the potential for the precise reconstruction of three-dimensional wounds inside the body, such as gastric wall injuries or damage and disease inside the colon.

“Our prototype is able to 3D print multilayered biomaterials of different sizes and shape through confined and hard-to-reach areas, thanks to its flexible body.

“Our approach also addresses significant limitations in existing 3D bioprinters such as surface mismatches between 3D printed biomaterials and target tissues/organs as well as structural damage during manual handling, transferring, and transportation process.”


The smallest F3DB prototype produced by the team at UNSW has a similar diameter to commercial therapeutic endoscopes (approximately 11-13mm), which is small enough to be inserted into a human gastrointestinal tract.


The device features a three-axis printing head directly mounted onto the tip of a soft robotic arm. This printing head, which consists of soft artificial muscles that allow it to move in three directions, works very similarly to conventional desktop 3D printers.

The soft robotic arm can bend and twist due to hydraulics and can be fabricated at any length required. Its stiffness can be finely tuned using different types of elastic tubes and fabrics.

The printing nozzle can be programmed to print pre-determined shapes, or operated manually where more complex or undetermined bioprinting is required. In addition, the team utilised a machine learning-based controller which can aid the printing process.

To further demonstrate the feasibility of the technology, the UNSW team tested the cell viability of living biomaterial after being printed via their system.

Experiments showed the cells were not affected by the process, with the majority of the cells observed to be alive post-printing. The cells then continued to grow for the next seven days, with four times as many cells observed one week after printing.


The nozzle of the F3DB printing head can be used as a type of electric scalpel to first mark and then cut away cancerous lesions.

Water can also be directed through the nozzle to simultaneously clean any blood and excess tissue from the site, while faster healing can be promoted by the immediate 3D printing of biomaterial directly while the robotic arm is still in place.

The research team demonstrated the way the F3DB could be used in a variety of different ways if developed to be an all-in-one endoscopic surgical tool.

The ability to carry out such multi-functional procedures was demonstrated on a pig’s intestine and the researchers say the results show that the F3DB is a promising candidate for the future development of an all-in-one endoscopic surgical tool.

“Compared to the existing endoscopic surgical tools, the developed F3DB was designed as an all-in-one endoscopic tool that avoids the use of changeable tools which are normally associated with longer procedural time and infection risks,” Mai Thanh Thai said.
